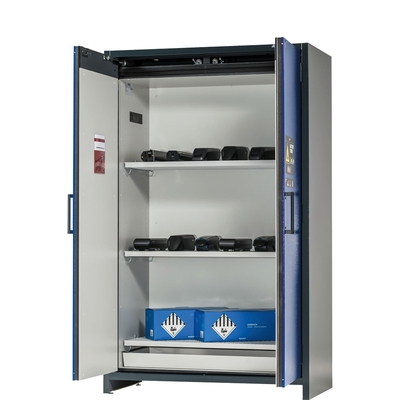

Cabinet CYCLUS TOOLS ION-PRO-90 by asecos, width 1200 mm, height 1955 mm, complete with alarm system for storage without installation and maintenance contract. Safe passive storage for lithium-ion batteries, with integrated 3-stage alarm system and fire suppression.

Details

External color anthracite grey (RAL 7016).

Swing doors in gentian blue (RAL 5010).

Interior with 4 perforated shelves (powder-coated steel sheet, max. load 75 kg).

1 floor sump (powder-coated steel sheet, tested according to StawaR).

3-stage alarm/fire suppression system.

Technical data

Dimensions W x D x H (external): 1193 x 615 x 1953 mm.

Dimensions W x D x H (internal): 1050 x 522 x 1647 mm.

Weight of empty cabinet: 424 kg.

Maximum load: 600 kg.

Surface load: 531 kg/m².

Function/Construction

Robust and durable: stable, high-quality, scratch-resistant external body with textured powder-coated surface, triple door hinges, complete locking mechanism, and cabinet safety elements mounted outside the storage space to protect against corrosion.

Easy to use and convenient: smooth self-closing doors (via hydraulic door closers). Minimal effort required to open the doors.

No unauthorized use: lockable doors with profile cylinder (lock) and clear lock status indicator (red/green).

Easy transport: integrated transport base for internal handling, optional base cover available.

Simple installation: integrated adjustable feet to compensate for uneven floors.

Safe storage: installed 3-stage alarm and fire suppression system, comprising: smoke detector, temperature sensor, visual and audible alarm, and fire suppression unit; activates automatically in case of fire; ready for connection to the electrical grid.

All-round protection: 90 minutes of fire protection from outside to inside (type 90 / tested according to EN 14470-1) and over 90 minutes of fire resistance in case of fire exposure from inside to outside.

EXPERT TIPS for reducing fire risk

Do not store visibly damaged lithium-ion batteries inside buildings. Dispose of them immediately in approved disposal containers for transport outside the building. Professional delivery and installation are carried out directly by the manufacturer. A maintenance contract with Asecos, executed directly by the manufacturer, is mandatory.
