CYCLUS TOOLS Crank extraction and repair kit with internal thread M22x1 and M24x1. Set equipped with a new type of extra-long stroke crank extractor.

Currently, especially on e-bikes, bottom bracket axles no longer have conical surfaces. Instead, the crank is fastened exclusively via stops and threaded connections. The position of the stops is often too long to loosen or remove the crank with traditional tools, which is why this "long working stroke" tool was developed. With this tool set, it is possible to disassemble the cranks from their respective axles. The long working stroke (over 20 mm) makes the extractor universally applicable. Whether it is a pressed crank or a new type with a threaded stop, both systems can be removed quickly, safely, and professionally.

It is possible to restore the existing crank threads with the M22x1 tap, or cut a new, larger thread into the crank using the M24 pilot hole reamer and the M24x1 thread repair tap. For precise and safe work, the set includes the corresponding guides.

The following dimensions are essential for using the Cyclus Tools extractor:

• The existing bottom bracket connection thread (e.g., M15x1).


• The internal thread of the crank (e.g., M22x1).

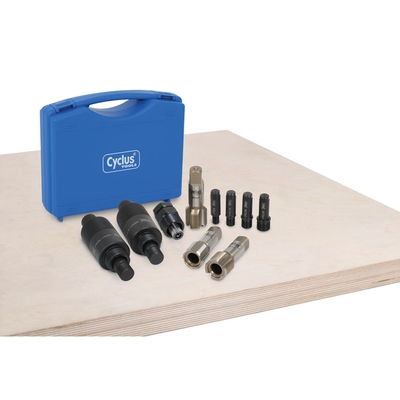

Set contents:

• 720013 - Tap for crank internal thread M22x1 for re-threading


• 720245 - Tap for crank internal thread M24x1 for thread repair


• 720233 - Crank extractor M22x1 - M15x1


• 720234 - Crank extractor M24x1 - M15x1


• 720235 - Pilot hole reamer diameter M24 for repair thread


• 720060 - Crank extractor for repair kit - special thread size M24


• 720374 - Guide set for bottom bracket connection thread M8x1, M10x1, M12x1, M15x1

As an option to the set, other crank extractors with combinations of bottom bracket connection thread and crank internal thread are available. For example, item 720243 with crank internal thread M22x1 and bottom bracket connection thread M10x1.

Make sure to use the correct cutting oil during milling or threading. Ask us, we will be happy to assist you.
